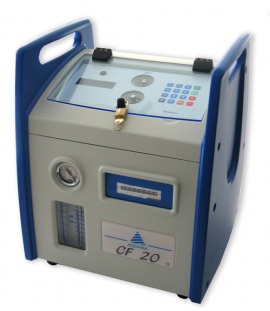

CF20 Electronic (dust and gas sampler)
|
|
CF 20alfa Electronic is an ideal instrument for all the operators who demand of a sampler be extremely reliable, careful in measurement as well as handy and versatile in use. This instrument, connected to the most various accessories designed in compliance with the law in force regulations, can operate dust and gas samples.
This sampler is in compliance with UNI EN 12919 |
|
|
- Chassis: front and back in high density polyurethane
rear aluminium
rounded corners
(The body of polyurethane and aluminium prevents rust and makes the instrument lighter and more pleasant. The elimination of sharp edges ensures full compliance with current regulations)
- Control console protected by a plexiglass panel transparent closed with a padlock
- Display: LCD
- Pump: double head membrane pump
- Flow range: 0,25 - 40 l/min free air (27 l/min with 0,8 ́m filter)
- Prevalence pump : 640 mm Hg
- Activation of sampling: through a keyboard which allows the input of the following functions:
° date and time of beginning and end of sampling
° volume o fair to be sampled
- Flow measurement: by means of n.2 high precision flow-meters
- Volume measurement: by means of dry flowmeter
- Resolution flow meter: 0,2 liter
- Normalization of the sampled volume by microprocessor
- Temperature measurement: through thermocouple with display of actual value
- Vacuum measurement: by means of an incorporated vacuum-gauge
- Steam trap at the back of the instrument
- Storage of the following parameters for the last sampling carried out:
° date and time of beginning and end of sampling
° volume o fair sampled
° normalized volume o fair at 0°C
° standardized volume of air at 25°C
° atmospheric pressure
° any black out
° average air temperature at the meter
- Power supply: mains 220 V 50 Hz
- Dimensions: 40(h) x 35 (p) x 31,5 (l) cm
- Weight: 12,7 kg
The instrument comes with a convenient handle removable plastic canvas |
|
