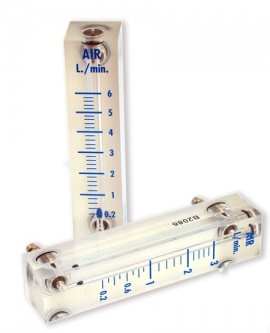

NOT CERTIFIED BALL FLOWMETER


A constant and reliable flow control is the basis of an appropriate and correct sampling, which is essential in order to subsequently obtain significative analytical results.
The systems offered by AQUARIA are able to cover a wide range of flows providing high accuracy of measurement.

FLOW METERS  (Hight: 300 mm)

- Tube: borosilicate glass
- Accuracy:  ± 1,2% measured value ; ± 0,4% f.s.
- Measuring range:
   0,2 – 2,5 l/min
   0,5 – 5 l/min
   1 – 10 l/min
   1 – 15 l/min
   2 – 25 l/min



FLOW METERS  (Hight: 100 mm)

- Tube: borosilicate glass
- Accuracy: ± 1,25% f.s.
- Measuring range:
   0,2 – 2 l/min
   0,2 – 3,4 l/min
   0,6 – 5 l/min
   1 – 10 l/min
   1 – 12 l/min
   2 – 25 l/min
   6 – 50 l/min



FLOW METERS (Hight: 150 mm)

- Tube: borosilicate glass
- Accuracy: ± 3% of measured value
- Measuring range:
   5 – 100 ml/min
   20 – 250 ml/min
   60 – 600 ml/min


All flow meters can be ordered with a special stand
