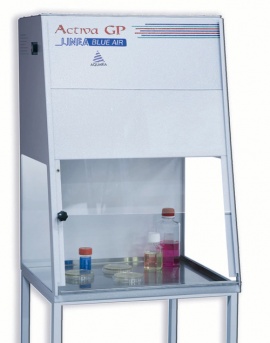

ACTIVA GP
|
|
Activa GP cabinet, designed to protect the operator against the risk of inhalation of toxic fumes and dust, allows to remove pollutants at source, as required by the consolidated text No 80.
The filtration for total removal of solid particles and the specific molecular filtration for toxic vapors, allow to recycle the air in the room without failure of the air conditioning of the room. The cabinet generates, in fact, an airflow that draws air from the ouside to the work area. In this way, the vapors eventually dispersed in the work area do not reach the operator, but are conveyed outside after filtration through activated carbon filter (mod. Activa GP-C), HEPA absolute filter (mod. Activa GP-H) or both (mod. Activa-CH). The filtered air is then ejected from the cabinet and recycled in the room or channeled outside the room.
The cabinet has a certification of the CNR in Rome for the containment of ammonia vapors. |
|
|
- External carpentry made of steel sheet, painted in epoxy antacid powder
– Side walls in clear polycarbonate, 5 mm thick
- Worktop in AISI 304 stainless steel, with edges suitable to contain liquids, removable - Front panel in clear polycarbonate, 5 mm thick, going up and down with vertical sliding manually,
- Available filters:
HEPA with efficiency of 99,995 MPPS in class H14 (norma EN 1822)
activated carbon, thickness of 60 mm
pre-filter 465 x 300 mm x 15
- Silent centrifugal electric aspirator, operating at variable speed by the operator
- Air speed: 0,5 m/sec in front opening
- Speed control: manual
- Capacity: 300 mc/h ca
- Noise level: < 60 dBA
- External dimensions: 525 x 510 x 760 mm (l x p x h)
- Usable dimensions: 500 x 460 x 360 mm (l x p x h)
- Power supply: 230 V – 50 Hz
- Net weight:
* mod. GP-H: 38 Kg
* mod. GP-C: 42 Kg
* mod. GP-CH: 44 Kg
- Compliance: built in accordance with standards DIN 12924 e DIN 12927 |
|
|
|
