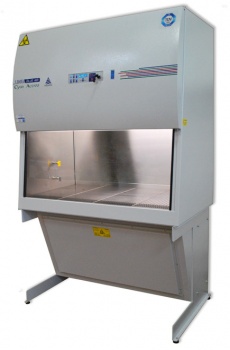

CYTO ACTIVA VE (for cytostatic)


The cabinet CYTO ACTIVA VE has been developed for the comprehensive protection of operator, product and environment during the manipulation of pathogen.
The biohazard cabinet Class II Type A1 and A2 (ex A and B3) has an opening front that draws air from the outside, vertical laminar airflow inside the cabin and HEPA filter output.

As required by regulations the air, decontaminated by HEPA filter, descends vertically with Class 100 laminar flow in the working area and it crosses the worktop. The contaminated air passes through the first stage of filtration placed under the worktop and is sucked by the fan motor at the top of the cabin and conveyed into a plenum: here about 70% of the air is sent again into the working area with absolute filtration while the remaining 30% is expelled to the outside, thanks to a second fan motor, after the absolute filtration. The expelled air is replenished with an equal amount of ambient air sucked through the front opening, creating a barrier front of isolation in the area of access to the workspace.

The cabinet is specific for cytostatic and preparation of antiblastic drugs.


Cyto Activa, 120 - 150 and 180 models have TUV certification in according to UNI EN 12469 (cert. n° ZI 10 09 62765 004 e n°Z1 10 09 62765 003)

- External chassie in steel sheet (thickness 15/10), powder coating and epoxy bottom anticorrosive
- Working room of stainless steel AISI 316 scotch-brite
- Perforated worktop in stainless steel AISI 304 scotch-brite, divided into sectors easily removed and sterilized in an autoclave
- Large liquid collection tank below the worktop in steel
- Unbreakable tempered front glass (thickness 6 mm) openable at motorized latch with acoustic alarm for wrong operating conditions
- Fan motors with electronic control (n°2) able to compensate for losses due to the gradual clogging of the HEPA filters
- Possibility to channel outside the exhaust air, if required, by the local of installation with the optional collar diameter of 250 mm)
- Plenum seal dynamic
- Stage of absolute filtration HEPA filters placed under the work plan. Change system for filters using transparent PVC bag (bag in – bag out)
- Two HEPA filters (one in down flow and one in exhaust), removable from the front top, with efficiency greater than 99.995% MPPS on particles with a diameter same or more than 0.3 microns (EN 1822)
- Sockets for DOP test on the downflow and the exhaust flow
- Automatic regulation of the speed of downflow air and exhaust air (front barrier) for automatic compensation of filter clogging
- Exhaust air flow: 400 mc/h
- Noise level: < 60 db
- Temperature increase: < 4°C
- Average speed LAF: > 0,40 m/sec (adjustable by the customer)
- Average speed barrier: > 0,40 m/sec (adjustable by the customer)
- Light on worktop: > 800 lux
- Power supply: 230 V; 50 Hz
- External dimensions (including stand)
   ° mod.   90:  980 x 795 x 2130 mm (L x W x H)
   ° mod. 120: 1285 x 795 x 2130 mm (L x W x H)
   ° mod. 150: 1465 x 795 x 2130 mm (L x W x H)
   ° mod. 180: 1890 x 795 x 2130 mm (L x W x H)
- Internal dimensions:
   ° mod.   90:  970 x 690 x 640 mm (L x W x H)
   ° mod. 120: 1275 x 690 x 640 mm (L x W x H)
   ° mod. 150: 1455 x 690 x 640 mm (L x W x H)
   ° mod. 180: 1880 x 690 x 640 mm (L x W x H)
- Net weight:
   ° mod.   90: 234 kg
   ° mod. 120: 300 kg
   ° mod. 150: 310 kg
   ° mod. 180: 365 kg


CONTROL BOARD

On the control panel, which contains the electronic board controlled by a new generation microprocessor, are present:
- General selector O/I with a key control
- Soft touch membrane keyboard in antistatic protection (protection IP55)
- Digital display with a real-time reading of the speed of vertical laminar flow and the front barrier, in meters/second
- Operation timer U.V. lamp countdown that can be set by the client with auto power off at the end of cycle
- Electronic digital hour meter of the operating of the machine
- Electronic digital hour meter of the operating of the U.V. lamp (if installed)
- Prealarm of reached maximum time limit of use HEPA filters installed with reporting requirements of the next replacement
- Audio and visual alarm for:
  * glass front in wrong position
  * clogged filters
  * malfunction of the fan
  * malfunction in the downflow and anomalies in the exhaust (front barrier)
  * reached limit of use of filters installed with reporting requirements of next replacement
  * end of UV lamp life
- Buttons:
  * fan activation
  * drive emergency solenoid valve (if installed) on gas tap
  * lighting of fluorescent lamp and UVC lamp (if installed) interlocked with each other
input internal power outlet
  * Emergency button for the possibility of increasing the flow rate of air expulsion (barrier protection operator)


COMPLIANCE

Safety cabin against biological risks (BIOHAZARD), with a work area protected by vertical laminar flow Class 100 (ISO 5), bench model, class II A1/A2

Built in accordance with:
- British Standard Institution (BSI 5726)
- Deutsches Institute fuer Normueng (DIN 12950 – DIN 12980)
- Italian Electrotechnical Committee(CEI 66.5)
- UNI-CIG

Recommendations made by WHO and the National Commission on fight against AIDS of the Ministry of Health on the safety of health workers
