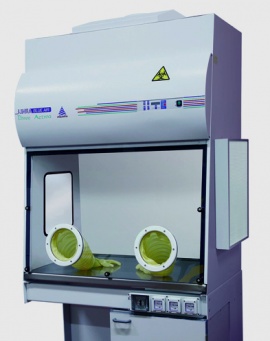

THREE ACTIVA (Class III)


The cabinet THREE ACTIVA has been designed and built with a work area tightly closed to ensure the highest level of personal protection from biological hazards.
The ambient air enters from the side of the cabin after decontamination using a HEPA filter. It then crosses the entire workingarea by investing the stainless steel floor. The contaminated air, sucked by a outside fan (that keeps a negative pressure inside the cabinet, about 124.5 Pa), is decontaminated by passing through a two-stage ULPA filters. Clean air is channeled outside the building through a sealed pipe. The access to the working area is provided by latex gloves sleeve positioned, and secured by means of flanges, on the front of the cabinet.

The product, although handled in a sterile environment, is potentially subject to the risk of cross contamination due to the turbulence of the airflow within the workspace. The turbulent air makes this cabinet poorly adapted in the case it is also necessary to ensure the sterility of the product.

- External chassie: in steel sheet, epoxy powder painted
- Working area in stainless steel AISI 304, surface scotch-brite, with rounded corners, completely surrounded by air cavity in vacuum
- Working area completely closed and sealed tightly. It is accessible only through the box of transit of materials
- Box for transit of materials made on the left side of the unit, double door with tempered glass and sealed with safety block with key
- Smooth worktop in stainless steel 304
- Unbreakable tempered glass front (thickness 8 mm) with No. 5 knobs mounting hermetic closure
- Front panel access to the work area with n° 2 extendable rubber latex gloves, replaceable from the outside by the Glove IN / OUT Glove method
- Radial remote fan in polypropylene (technical and dimensional characteristics of the fan should be given according to the type and length of channel required)
- Total expulsion of the air outside the building (recirculation zero) through sealed pipe (diameter 250 mm) in PVC or galvanized steel or other suitable material
- Absolute filtration of the intake air made on the right side through n° 1 HEPA filter with efficiency in accordance with EN1822 (99.995 MPPS)
- Absolute filtration of exhaust air through n° 2 layers of ULPA filters in class H15 with efficiency 99.9995 MPPS according to EN 1822
- DOP test sockets to the collector of expulsion
- Autoregulation of flow rate preset according to the gradual clogging of the HEPA filter incoming and the two ULPA filters in exhaust
- Incoming air speed: minimum 0.70 m/sec - max 1.10 m/sec (measured on the vertical lateral plane of the opening of incoming stream)
- Light on the top: > 800 lux (produced by neon fluorescent 18 watts, with a diffuser, protection IP65)
- UV Lamp: 20 Watt, with activation interlocked respect to fluorescent lighting
- Power supply: 230 V; 50 Hz
- Dimensions of the box for introducing materials: 300 x 300 (side x side) x 300 (depth) mm
- External dimensions (excluding stand):
   ° mod. 120: 1580 x 750 x 1650 mm (L x W x H)
   ° mod. 150: 1880 x 750 x 1650 mm (L x W x H)
   ° mod. 180: 2200 x 750 x 1650 mm (L x W x H)
- Internal dimensions:
   ° mod. 120: 1160 x 630 x 900 mm (L x W x H)
   ° mod. 150: 1460 x 630 x 900 mm (L x W x H)
   ° mod. 180: 1760 x 630 x 900 mm (L x W x H)
- Net weight:
   ° mod. 120: 230 kg
   ° mod. 150: 250 kg
   ° mod. 180: 270 kg


CONTROL BOARD

On the control board, which contains the electronic board controlled by a new generation microprocessor, are present:
- switch O / I bipolar
- soft touch membrane keyboard in static protection
- digital display with real-time speed and vertical laminar flow front of the barrier, in m/s
- countdown time meter for UV lamp programmable by the customer with automatic switch off
- Digital hour meter of :
  * operating of the machine
  * operating lamp U.V. (if installed)
- Early warning of:
  * next filter change with indication on display
  * next change UV lamp indication on display
- Audible and visual alarm for the air speed or vacuum inside the work chamber insufficient


COMPLIANCE

Cabin safety against biological risks (BIOHAZARD), bench model, classified Class III type B2 and therefore appropriate for handling pathogens at high risk (Group IV)

Built in accordance with:
European Standard EN 1822 and EN12469: 2000
British Standard Institution (BSI 5726 Part 1)
Deutsches Institute fuer Normueng (DIN 12950 Teil 10)
