CF20alfa LIGHT

CF20alfa LIGHT

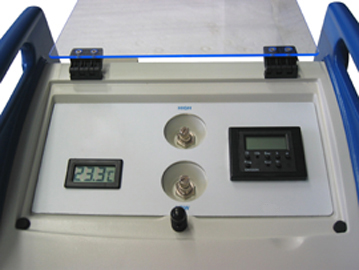

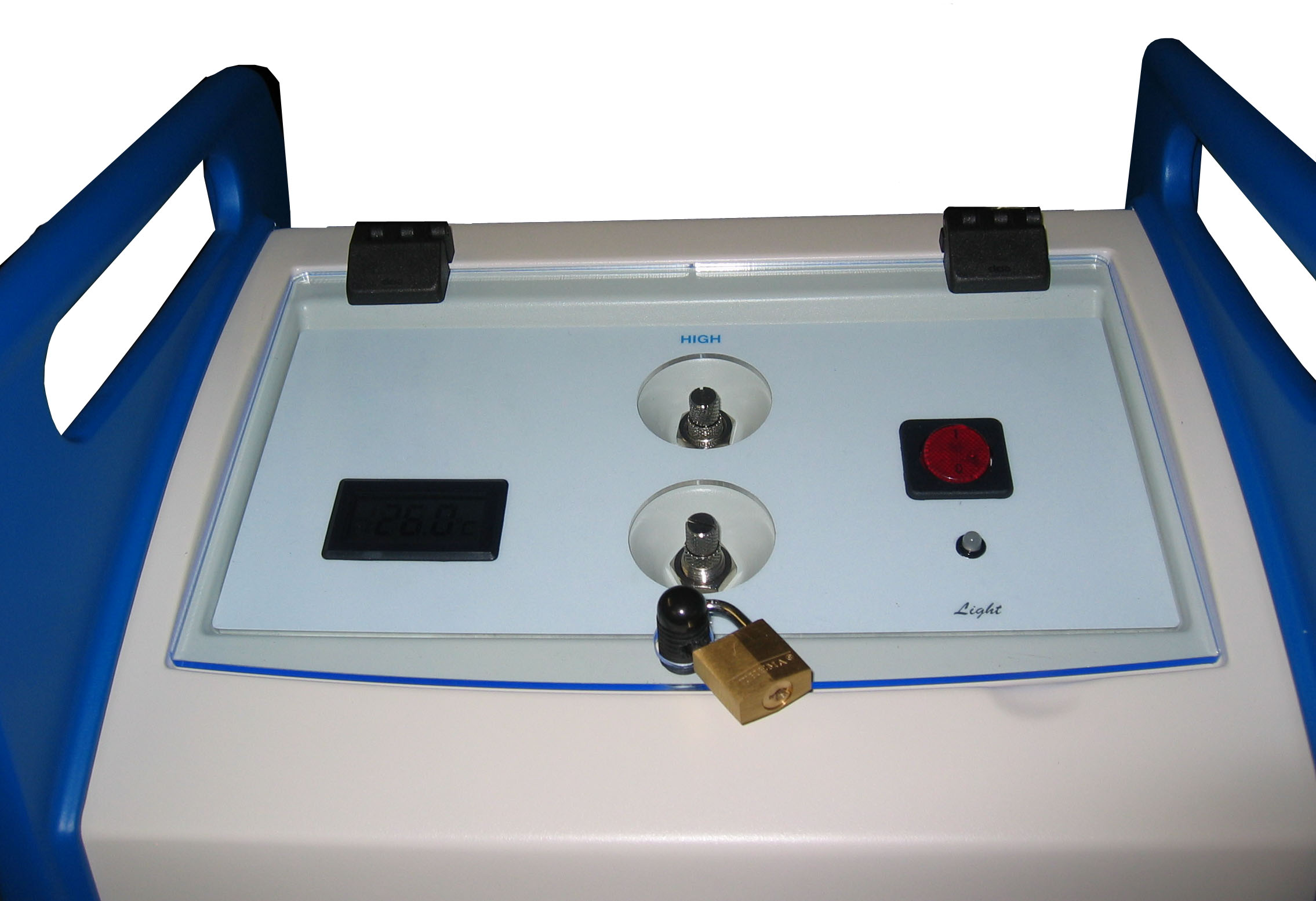

Control panel

CF20 alfa Light

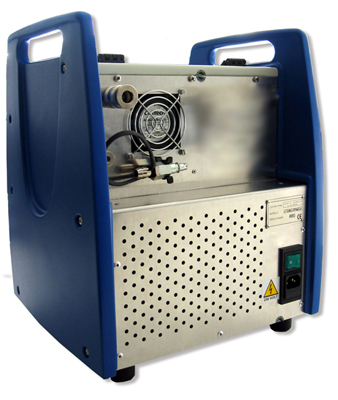

Back

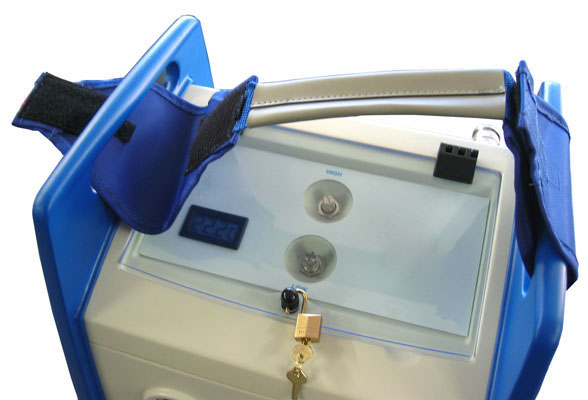

Removable handle

in plasticized canvas

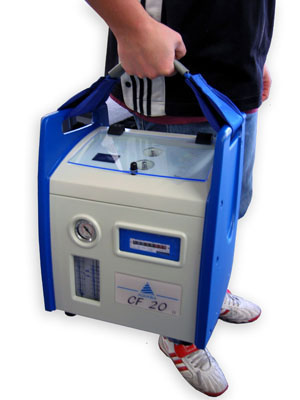

Transport by one people

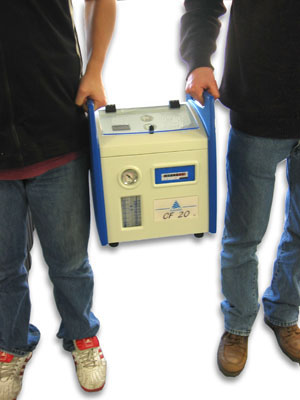

Transport by two people

CF20 α Light is equipped with a comfortable removable handle in plasticized canvas.

Application fields:

• Workplace
• Emission
• Immission


The instrument is in compliant with:

• UNI EN  12919 norm

TECHNICAL FEATURES

• Chassis: front and lateral side are in high density polyurethane
  rear side in aluminum
  rounded edges
• The chassis in polyurethane and aluminum prevent the formation of rust and make the equipment lighter and likeable.
  The removal of sharp edges ensures full compliance with current legislation.
• The control panel is protected with a transparent Plexiglas panel that can be blocked with a lock.
• Filter for particulate is located on the back of the instrument for pump protection (replaceable)
• Pump type: Membrane single head
• Flow rate range: 0,25 ÷ 16 l/min (with fiber glass filters or porosity 0,8 μm MCE membrane filter)
• Flow rate at free blowing: 20 liters/min
• Flow rate measuring: by two accurate flowmeters (range from 0,2 to 6 l/min and from 2 to 40 l/min)
• Volume measuring: by gas meter
• Gas meter resolution: 0,2 litres
• Temperature measuring: by an thermometer with real time visualization on display
• Vacuum measuring:  by a built-in vacuum gauge (the vacuum gauge allow to verify the pneumatic line seal and the gradual obstruction of the media used)
• Activation: with On/Off switch
• Power: cabled, 220 V 50 Hz
• Dimensions: 35 x 40 x 31,5 cm (D x H x W)
• Weight: 11,3 kg
• Operating conditions:
     – temperature: 0 – 40°C
     – umidity: 20- 80% without condense


The instruments can be supplied also with a weekly built-in digital programmer to automate the switching on and off. Through the programmer is possible:
-      Set the current time
-      Set the start and end of the sampling
-      Set up to 8 cycle of sampling to be carried on the same day
-      Set up to 8 cycle of sampling to be carried out on the following group of days:
        from Monday to Sunday
        from Monday to Friday
        from Saturday to Sunday
-      Set the start and end of a sampling to repeat itself in the above mentioned group of days
-      Set the function  “summer time”
-      Turn on and off the manual sampling

 NEWS!!!

To reduce difficulties and relieve fatigue that often accompanies the sampling operations related to the transportation of instruments, Aquaria has created the first patented on wheels version.

The CF20α Light can indeed be provided in the “trolley” version, with resistant rear wheels and to be carried as a simple trolley.
The trolley telescopic handle can be used as support for a practical bag for accessories, PC, tablet etc. (available as an option).

On the back of the instrument it is also possible to install a telescopic rod (adjustable from 80 to 160 cm) for the attachment of the sampling device, to make the entire sampling system more compact and functional.

ACCESSORIES for WORKPLACES SAMPLING

• Tripod to attach sampling supports
• Filter holder device for dusts (inhalable and respirable, PM10 e 2.5), metals and fibers
• Tube holder (for Standard and Large adsorbent tube)
• Impinger in compliance with DPR n. 322/1971 and DPCM 28/3/1983
• Calibration systems certified or not

ACCESSORIES for per SAMPLING EMISSIONS

• Isokinetic probes in stainless steel or titanium for dusts sampling
• Heated Isokinetic probes in stainless steel or titanium for micropollutant sampling in compliance with standard EN 1948 (patent n° MI2009U000387 granted on 30.11.2009)
• Multihols probes for gas sampling
• Tube holder (for Large and Jumbo adsorbent tube)
• Velometer, Temperature and ΔP data logger for the calculation of the parameters necessary for a correct isokinetic sampling
• Isobook, touch screen computers to get and set the necessary parameters for correct isokinetic sampling (in compliance with UNI 13284, ISO16911, ISO 9096)
• Impinger in compliance with DPR n. 322/1971 and DPCM 28/3/1983
• High efficiency glass condenser capacity of 1 and 2 liters
• Dehumidifier Cylinder in plexiglass
• Cooler case and portable cooler box

CONSUMABLES

• Membrane filters
• Adsorbent tubes
• Bags for gas sampling
• Membrane filter holder for carrying (patent No. 259465 granted on 04.09.2008): diam. 25, 37 and 47mm

Click here to download the brochure

Click here to download “sampling line for working and outdoor area”
Click here to download “sampling line for emission: dust”
Click here to download “sampling line for emission: organic gases”
Click here to download “sampling line for emission: inorganic gases”

CF20alfa Light Battery

CF20 Light/Battery

Control panel

CF20 Light Battery

Back

CF20alfa Light Battery

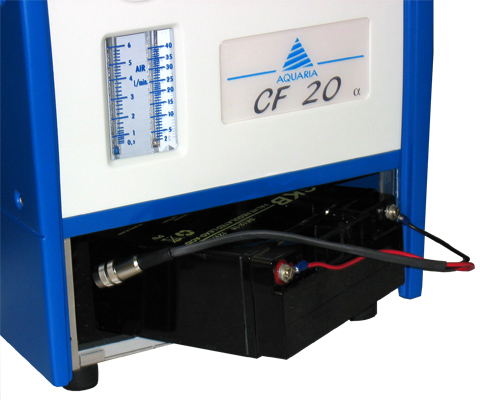

Lead battery

The CF20α Light/Battery is suitable for any operator that needs a reliable and accurate sampler, easy to handle and versatile. With this instrument, in combination with various accessories designed in compliance with current regulations, it is possible to sample powders and gases on workplaces, immissions and emissions, even in areas without electrical network supply.

CF20 α Light is equipped with a comfortable removable handle in plasticized canvas.

Field of application:

• Workplace
• Emission
• Immission


The instrument is in compliant with:

• UNI EN  12919 norm

TECHNICAL FEATURES

• Chassis: front and lateral side are in high density polyurethane
  rear side in aluminum
  rounded edges
• The chassis in polyurethane and aluminum prevent the formation of rust and make the equipment lighter and likeable.
  The removal of sharp edges ensures full compliance with current legislation.
• The control panel is protected with a transparent Plexiglas panel that can be blocked with a lock.
• Filter for particulate is located on the back of the instrument for pump protection (replaceable)
• Pump type: Membrane single head
• Flow rate range: 0,25 ÷ 16 l/min (with fiber glass filters or porosity 0,8 μm MCE membrane filter)
• Flow rate at free blowing: 20 liters/min
• Flow rate measuring: by two accurate flowmeters (range from 0,2 to 6 l/min and from 2 to 40 l/min)
• Volume measuring: by gas meter
• Gas meter resolution: 0,2 litres
• Temperature measuring: by an thermometer with real time visualization on display
• Vacuum measuring:  by a built-in vacuum gauge (the vacuum gauge allow to verify the pneumatic line seal and the gradual obstruction of the media used)
• Activation: with On/Off switch
• Power: rechargeable lead batteries and cabled 220 V 50 Hz.
  The instrument can be supplied with nickel-iron batteries (optional). This model allows to sample at 10 l/min for 5 hours, with a weight of 14 kg.
• Average lead batteries life: 3 hours
• Dimensions: 35 x 51 x 31,5 cm (D x H x W)
• Weight: 16,65 kg (weight without batteries: 13 kg)
• Operating conditions:
     – temperature: 0 – 40°C
     – umidity: 20- 80% without condense


The instruments can be supplied also with a weekly built-in digital programmer to automate the switching on and off. Through the programmer is possible:
-      Set the current time
-      Set the start and end of the sampling
-      Set up to 8 cycle of sampling to be carried out on  the same day
-      Set up to 8 cycle of sampling to be carried out on the following group of days:
        from Monday to Sunday
        from Monday to Friday
        from Saturday to Sunday
-      Set the start and end of a sampling to repeat itself in the above mentioned group of days
-      Set the function  “summer time”
-      Turn on and off the manual sampling

 NEWS!!!

To reduce difficulties and relieve fatigue that often accompanies the sampling operations related to the transportation of instruments, Aquaria has created the first patented on wheels version.

The CF20α Light/Battery can indeed be provided in the “trolley” version, with resistant rear wheels to be carried as a simple trolley.
The trolley telescopic handle can be used as support for a practical bag for accessories, PC, tablet etc. (available as an option).

On the back of the instrument it is also possible to instal a telescopic rod (adjustable from 80 to 160 cm) for the attachment of the sampling device, to make the entire sampling system more compact and functional.

ACCESSORIES for WORKPLACES SAMPLING

• Tripod to attach sampling supports
• Filter holder device for dusts (inhalable and respirable, PM10 e 2.5), metals and fibers
• Tube holder (for Standard and Large adsorbent tube)
• Impinger in compliance with DPR n. 322/1971 and DPCM 28/3/1983
• Calibration systems certified or not

ACCESSORIES for per SAMPLING EMISSIONS

• Isokinetic probes in stainless steel or titanium for dusts sampling
• Heated Isokinetic probes in stainless steel or titanium for micropollutant sampling in compliance with standard EN 1948 (patent n° MI2009U000387 granted on 30.11.2009)
• Multihols probes for gas sampling
• Tube holder (for Large and Jumbo adsorbent tube)
• Velometer, Temperature and ΔP data logger for the calculation of the parameters necessary for a correct isokinetic sampling
• Isobook, touch screen computers to get and set the necessary parameters for correct isokinetic sampling (in compliance with UNI 13284, ISO16911, ISO 9096)
• Impinger in compliance with DPR n. 322/1971 and DPCM 28/3/1983
• High efficiency glass condenser capacity of 1 and 2 liters
• Dehumidifier Cylinder in plexiglass
• Thermal case and portable Freezer

CONSUMABLES

• Membrane filters
• Adsorbent tubes
• Bags for gas sampling
• Membrane filter holder for carrying (patent No. 259465 granted on 04.09.2008): diam. 25, 37 and 47 mm

Click here to download the brochure

Click here to download “sampling line for working and outdoor area”
Click here to download “sampling line for emission: dust”
Click here to download “sampling line for emission: organic gases”
Click here to download “sampling line for emission: inorganic gases”

CF20alfa Basic

CF20alfa Basic

Control panel

CF20 alfa Basic

Back

Removable HANDLE

in plasticizen canvas

Transport by one people

Transport by two people

CF20 α Basic is equipped with a comfortable removable handle in plasticized canvas.

Fields of application:

• Workplace
• Emission
• Immission


The instrument is in compliant with:

• UNI EN  12919 norm

TECHNICAL FEATURES

• Chassis: front and lateral side are in polyurethane at high density
  rear side in aluminum
  rounded edges
• The chassis in polyurethane and aluminum prevent the formation of rust and make the equipment lighter and likeable.
  The removal of sharp edges ensures full compliance with current legislation.
• The control panel is protected with a transparent Plexiglas panel that can be blocked with a lock.
• Filter for particulate is located on the back of the instrument for pump protection (replaceable)
• Pump type: Membrane double head
• Flow rate range: 0,25 ÷ 27 l/min (with fiber glass filters or porosity 0,8 μm MCE membrane filter)
• Flow rate at free blowing: 40 liters/min
• Flow rate measuring: by two accurate flowmeters (range from 0,2 to 6 l/min and from 2 to 40 l/min)
• Volume measuring: by gas meter
• Gas meter resolution: 0,2 litres
• Temperature measuring: by an thermometer with real time visualization on display
• Vacuum measuring:  by a built-in vacuum gauge (the vacuum gauge allow to verify the pneumatic line seal and the gradual obstruction of the media used)
• Activation: with On/Off switch
• Power: cabled, 220 V 50 Hz
• Dimensions: 35 x 40 x 31,5 cm (D x H x W)
• Weight: 12,7 kg
• Operating conditions:
     – temperature: 0 – 40°C
     – umidity: 20- 80% without condense


The instruments can be supplied also with a weekly built-in digital programmer to automate the switching on and off. Through the programmer is possible:
-      Set the current time
-      Set the start and end of the sampling
-      Set up to 8 cycle of sampling to be carried out on the same day
-      Set up to 8 cycle of sampling to be carried out on the following group of days:
        from Monday to Sunday
        from Monday to Friday
        from Saturday to Sunday
-      Set the start and end of a sampling to repeat itself in the above mentioned group of days
-      Set the function  “summer time”
-      Turn on and off the manual sampling

 NEWS!!!

To reduce difficulties and relieve fatigue that often accompanies the sampling operations related to the transportation of instruments, Aquaria has created the first patented on wheels version.

The CF20α Basic can indeed be provided in the “trolley” version, with resistant rear wheels to be carried as a simple trolley.
The trolley telescopic handle can be used as support for a practical bag for accessories, PC, tablet etc. (available as an option).

On the back of the instrument it is also possible to install a telescopic rod (adjustable from 80 to 160 cm) for the attachment of the sampling device, to make the entire sampling system more compact and functional.

ACCESSORIES for WORKPLACES SAMPLING

• Tripod to attach sampling supports
• Filter holder device for dusts (inhalable and respirable, PM10 e 2.5), metals and fibers
• Tube holder (for Standard and Large adsorbent tube)
• Impinger in compliance with DPR n. 322/1971 and DPCM 28/3/1983
• Calibration systems certified or not

ACCESSORIES for per SAMPLING EMISSIONS

• Isokinetic probes in stainless steel or titanium for dusts sampling
• Heated Isokinetic probes in stainless steel or titanium for micropollutant sampling in compliance with standard EN 1948 (patent n° MI2009U000387 granted on 30.11.2009)
• Multihols probes for gas sampling
• Tube holder (for Large and Jumbo adsorbent tube)
• Velometer, Temperature and ΔP data logger for the calculation of the parameters necessary for a correct isokinetic sampling
• Isobook, touch screen computers to get and set the necessary parameters for correct isokinetic sampling (in compliance with UNI 13284, ISO16911, ISO 9096)
• Impinger in compliance with DPR n. 322/1971 and DPCM 28/3/1983
• High efficiency glass condenser capacity of 1 and 2 liters
• Dehumidifier Cylinder in plexiglass
• Thermal case and portable Freezer

CONSUMABLES

• Membrane filters
• Adsorbent tubes
• Bags for gas sampling
• Membrane filter holder for carrying (patent No. 259465 granted on 04.09.2008): diam. 25, 37 and 47 mm

Click here to download the brochure

Click here to download “sampling line for working and outdoor area”
Click here to download “sampling line for emission: dust”
Click here to download “sampling line for emission: organic gases”
Click here to download “sampling line for emission: inorganic gases”

CF20alfa HV

CF20alfa HV

Control panel

CF20alfa HV

Back

CF20alfa HV

How to carry it

The CF20α HV is suitable for any operator that needs a reliable and accurate sampler, easy to handle and versatile. With this instrument, in combination with various accessories designed in compliance with current regulations, it is possible to sample powders on workplaces, immissions and emissions.
The strong performance of the built-in pump allows sampling of PM10 and 2.5 dust in compliance with EN 12341 and EN 14907 which require a sample flow rate of 2.3 m3/h (equivalent to a suction flow of 38,3 l/min).

CF20 α Light is equipped with a comfortable removable handle in plasticized canvas.

Application fields:

• Workplace
• Emission
• Immission


The instrument is in compliance with:

• UNI EN  12919 norm

TECHNICAL FEATURES

• Chassis: front and lateral side are in high density polyurethane
  rear side in aluminum
  rounded edges
• The chassis in polyurethane and aluminum prevent the formation of rust and make the equipment lighter and likeable.
  The removal of sharp edges ensures full compliance with current legislation.
• The control panel is protected with a transparent Plexiglas panel that can be blocked with a lock.
• Filter for particulate is located on the back of the instrument for pump protection (replaceable)
• Pump type: dry rotary
• Flow rate range: 5 ÷ 40 l/min (with fiber glass filters or porosity 0,8 μm MCE membrane filter)
• Flow rate at free blowing: 50 liters/min
• Flow rate measuring: by one accurate flowmeter (range from 2 to 40 l/min)
• Volume measuring: by gas meter
• Gas meter resolution: 0,2 litres
• Temperature measuring: by an thermometer with real time visualization on display
• Vacuum measuring:  by a built-in vacuum gauge (the vacuum gauge allow to verify the pneumatic line seal and the gradual obstruction of the media used)
• Activation: with On/Off switch
• Power: cabled, 220 V 50 Hz
• Dimensions: 35 x 52 x 31,5 cm (D x H x W)
• Weight: 17,85 kg
• Operating conditions:
     – temperature: 0 – 40°C
     – umidity: 20- 80% without condense


The instruments can be supplied also with a weekly built-in digital programmer to automate the switching on and off. Through the programmer is possible:
-      Set the current time
-      Set the start and end of the sampling
-      Set up to 8 cycle of sampling to be carried out on the same day
-      Set up to 8 cycle of sampling to be carried out on the following group of days:
        from Monday to Sunday
        from Monday to Friday
        from Saturday to Sunday
-      Set the start and end of a sampling to repeat itself in the above mentioned group of days
-      Set the function  “summer time”
-      Turn on and off the manual sampling

 NEWS!!!

To reduce difficulties and relieve fatigue that often accompanies the sampling operations related to the transportation of instruments, Aquaria has created the first patented on wheels version.

The CF20α HV can indeed be provided in the “trolley” version, with resistant rear wheels to be carried  as a simple trolley.
The trolley telescopic handle can be used as support for a practical bag for accessories, PC, tablet etc. (available as an option).

On the back of the instrument it is also possible to install a telescopic rod (adjustable from 80 to 160 cm) for the attachment of the sampling device, to make the entire sampling system more compact and functional.

ACCESSORIES for WORKPLACES SAMPLING

• Tripod to attach sampling supports
• Filter holder device for dusts (inhalable and respirable, PM10 e 2.5), metals and fibers
• Tube holder (for Standard and Large adsorbent tube)
• Impinger in compliance with DPR n. 322/1971 and DPCM of 28/3/1983
• Calibration systems certified or not

ACCESSORIES for per SAMPLING EMISSIONS

• Isokinetic probes in stainless steel or titanium for dusts sampling
• Heated Isokinetic probes in stainless steel or titanium for micropollutant sampling in compliance with standard EN 1948 (patent n° MI2009U000387 granted on 30.11.2009)
• Multihols probes for gas sampling
• Tube holder (for Large and Jumbo adsorbent tube)
• Velometer, Temperature and ΔP data logger for the calculation of the parameters necessary for a correct isokinetic sampling
• Isobook, touch screen computers to get and set the necessary parameters for correct isokinetic sampling (in compliance with UNI 13284, ISO16911, ISO 9096)
• Impinger in compliance with DPR n. 322/1971 and DPCM of 28/3/1983
• High efficiency glass condenser capacity of 1 and 2 liters
• Dehumidifier Cylinder in plexiglass
• Thermal case and portable Freezer

CONSUMABLES

• Membrane filters
• Adsorbent tubes
• Bags for gas sampling
• Membrane filter holder for carrying (patent No. 259465 granted on 04.09.2008): diam. 25, 37 and 47mm

Click here to download the brochure

Click here to download “sampling line for working and outdoor area”
Click here to download “sampling line for emission: dust”
Click here to download “sampling line for emission: organic gases”
Click here to download “sampling line for emission: inorganic gases”
